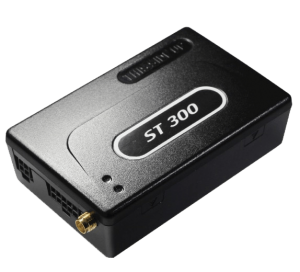

Suntech ST300
Suntech ST300 is a vehicle tracking and controlling device with multiple functions. It covers a wide range of applications and requirements of professional users by providing configurable inputs/outputs and reliable GPRS communication ability. It also features Bluetooth/Wi-Fi support and Dual-SIM option.
Server Integration
| Server IP | 116.203.105.226 | |
| Port | 6011 | |
| Protocol | adm |
General information
| Purpose | Vehicle | |
| Installation | Professional |
Housing
| Weight | 100 g (3.53 oz.) | |
| Size | 90.5x58x26 mm (3.56x2.28x1.02 in) |
GNSS Location
| Internal antenna (GNSS) | ||
| External antenna (GNSS) | Yes | |
| GPS | Yes |
Connectivity
| Cellular network type | GSM Quad Band | |
| Internal antenna (Connection) | ||
| External antenna (Connection) | Yes | |
| Cellular network generation | 2G | |
| WiFi | Yes |
Interfaces
| 1-Wire interface | Yes | |
| RS232 interface | Yes | |
| Number of outputs | 2 | |
| Number of inputs (all types) | 12 | |
| ACC/Ignition input | Yes | Supported |
| Discrete inputs | Yes | Supported |
| Analog inputs | Yes | Supported |
| Outputs | Yes | Supported |
Hardware features
| Battery capacity | 450 mAh | |
| Built-in battery | Optional | |
| Emergency button | Yes | Supported |
Hardware extras
| Emergency button | Yes | Supported |
| Fuel level sensor reading | Yes | Supported |
| Driver ID reading | Yes | On Request |
Tracking features
| Tracking modes | Continuous | |
| Location by Cell ID | Yes | Supported |
| Smart power consumption | Yes | Supported |
| Odometer | Yes |
Events monitoring
| Battery low | Yes | Supported |
| Device switched on/off | Yes | Supported |
Self monitoring
| Network signal level | Yes | Supported |
| GNSS signal level | Yes | Supported |
Remote management
| Server connection setup over SMS | Yes | Supported |
| Remote device configuration | Yes (over GPRS) | Supported |
| Firmware update OTA | Yes |
Certification
| CE | Yes | |
| FCC | Yes | |
| EAC | Yes |
